PH-56 Pig Drinker Nipple Stainless Steel 304

Availability:
Quantity:
  • PH-56

H355c0e461d834570bd0eeba52a682f50i

Working Process of pig water nipple

When pig wishes to drink, they hold the drinker in its mouth and bite the valve rod to let the water go through the gap of the valve plug and sealing ring. When pig stops biting, the return spring will haul back the valve rod, and the gap is sealed again to stop the water flowing. This kind of drinker has good sealed performance and slow water flowing, convenient for pig to drink.

Application of pig water nipple

There’re two kinds of duck-billed pig waterer, the small one with flow of 2-3L/min, and the big one with flow of 3-4L/min. The small one is suit for piglet, and the big one is suit for fattening pig and adult pig.

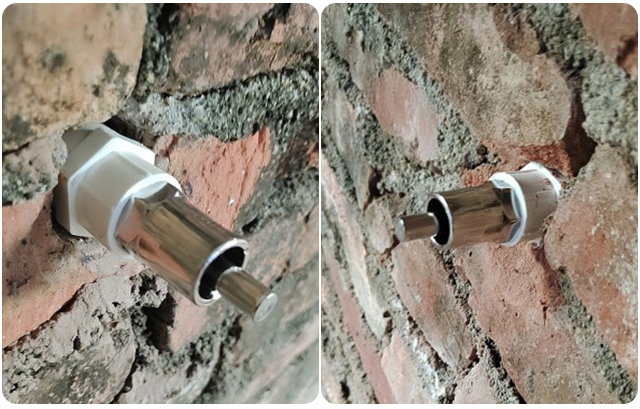

Installation

The angle of installation is 45º or horizontal, and the terrain clearance depends on pig’s weight. The pig waterer should be installed in defecation area, which is away from pig’s resting area. The pig water drinker needs to be checked regularly, clean the dirties, adjust and strength the screws. The component should be changed timely if there’s any

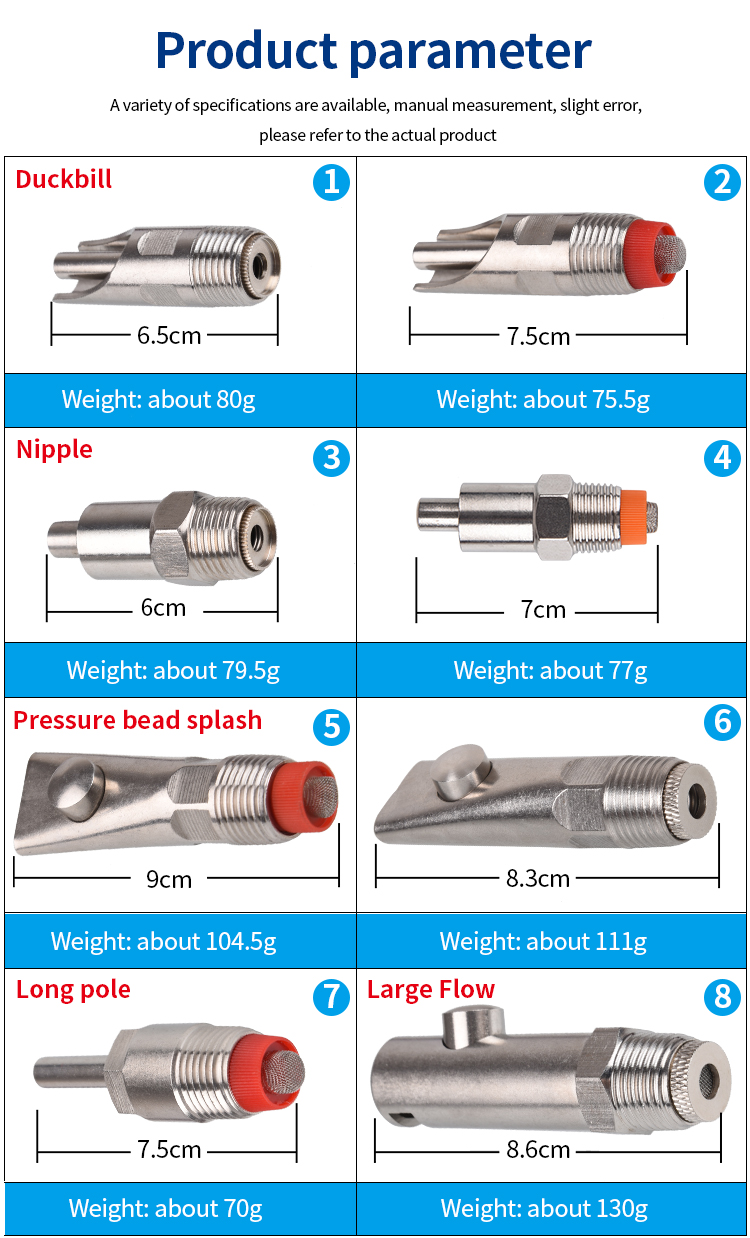

Product parameter
Introduction to the parameters of pig drinkers
Growth stage
Pig type
body weig ht(kg)
45° height from the wall (cm)
90° height from the wall (cm)
Water flow freque ncy m/min
Recomm ended drinking fountain
Recom mended drinking bowl
Nursery period
Suckling piglets
5
30
25
300
Duckling mouth type
Small bowl
Nursery period
Weaned piglets
7
35
30
700
Nipple type
Small bowl
Growth prophase
15kg growing pig
15
45
35
1000
Nipple type
Small bowl
Late growth
20kg growing pig
20
50
40
1500
Nipple type
Medium bowl
Early fattening
30kg growing pig
30
55
45
1500-200
Nipple type
Medium bowl
Late fattening
80kg growing pig
80
70
65
1500-2000
Pressure bead splash water
Big bowl
The above is for reference only, please purchase according to your own needs and experience for specific purchase

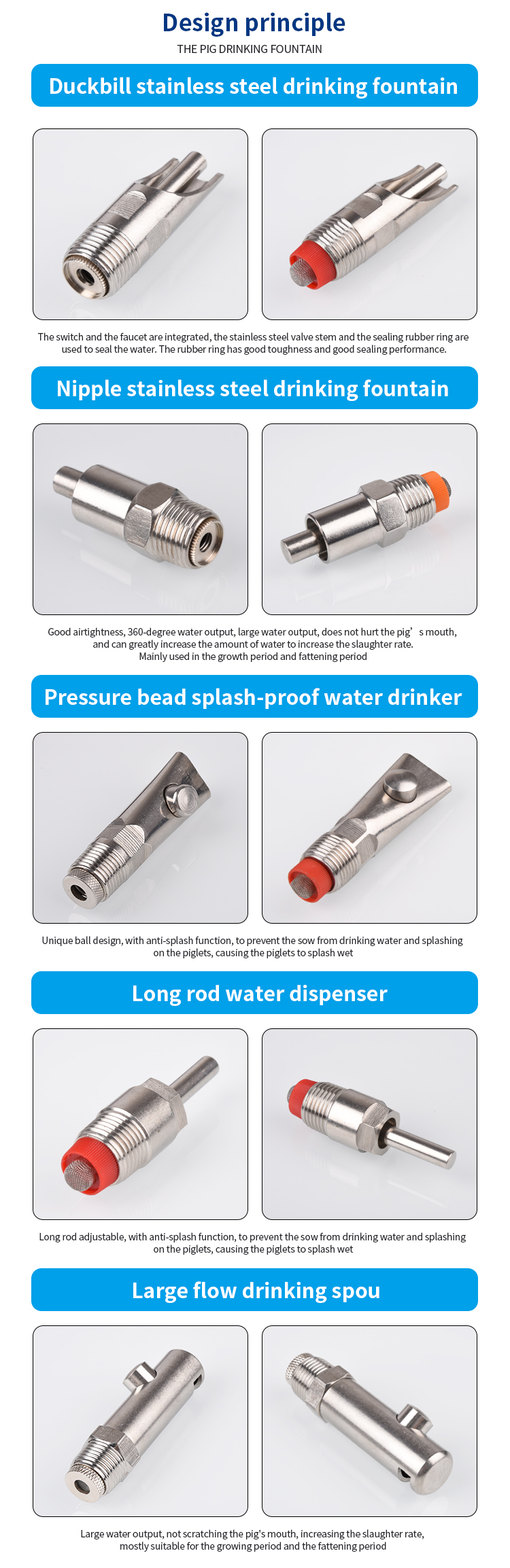

Product introduction


It is composed of a drinking vessel body, a valve shaft, a steel ball and a water filter net.when drinking water, the pig's mouth pushes the valve against the steel ball is lifted up, and the water flows out from the gap between the steel ball and the drinking fountain for pigs to use.steel ball after drinking the valve stem relies on self-repeat position, and the water outlet is tightly sealed under the action of water pressure.not only effective water resources have also been reduced, and artificial water supply has been reduced. it is a standing drinking equipment for modern pig farms

Products Description

pig-nipple-driker-0700pig-nipple-driker-0003
